Sunpack Released New Product: 204V 52Ah Slim Stackable LiFePO4 Home Solar Battery

This slim-designed 204V 52Ah LiFePO4 battery system features convenient plug-and-play stacking capability, eliminating the need for messy cables connection. High voltage with lower current can enhance efficiency and minimize energy losses.
Jul 30th,2023 573 Views

Since energy storage is a key part of energy transition and power transformation, Sunpack has developed a new 204V50Ah energy storage system, which is a safe, efficient and economical home energy storage system, An ESS can store surplus energy generated from rooftop photovoltaic panels for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in your ESS to meet your energy needs at no extra cost. In addition, an ESS helps you pursue the goal of energy self-consumption and ultimately energy-independent.

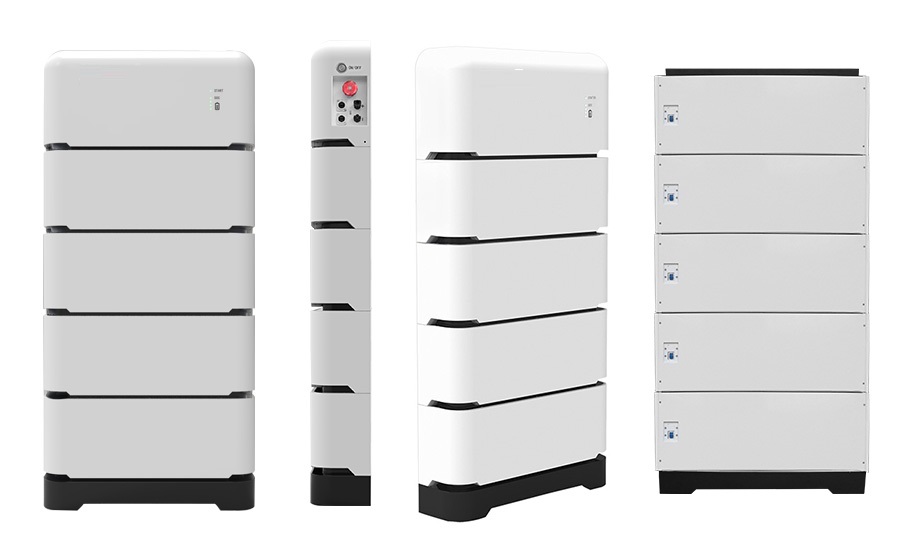

All angles picture of SPF204V50Ah Battery
Key Features:
  • Slim design –  Saving space. This lithium battery system is floor-mounted and firmly fixed to the wall.

  • High voltage system – Enhancing efficiency and responsiveness with lower current levels, minimizing energy losses during charge and discharge cycles.

  • Grade A Cells – Using high quality lithium iron phosphate battery as the main body of energy storage, with feature of large capacity, light weight and and higher safety.

  • Independent BCU (Battery Control Unit), in combination with the BMU of each battery module, offers complete protection including safeguards against over-voltage, over-temperature, overload, and overcharging.

  • Good compatibility – Standard communication protocol, CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.

  • Easy installation – Plug and play assembly, no more cables between modules, enhancing usage security.

Technical Parameters:
Model SPF204V50-HV
Battery Type LiFePO4
Nominal Voltage 204.8V
Nominal Capacity 50Ah
Nominal Energy 10.24kWh
Max. Continuous Charge Current 35A@20°C
Max. Continuous Discharge Current 50A@20°C
Max. Output Power 10.24kW
Dimension W*D*H 600x160x1120mm
Weight 108kg
Charging Temperature Range 0-50°C
Discharge Temperature Range -20-60°C
Cycle Life 6000 cycles @ 80% DOD
Designed Life-span 10 years
HVDC Controller 1pcs
Battery Modules 4pcs or 2pcs
Communication mode CAN, RS485/ETH Optional
Inverter Choosing On/Off Grid Single/3 phases inverter
Housing material Cold rolled steel sheet
Enclosure IP54
Installation Floor mounting, fixed with wall

application scenarios of SPF204V50Ah Battery
