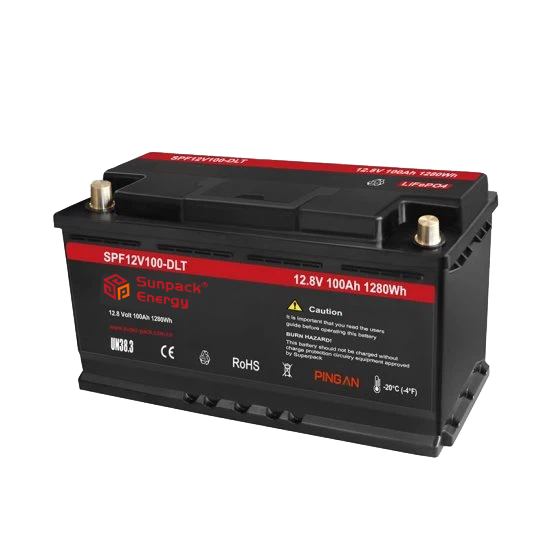

This high-quality 12V 100Ah battery is made with A-grade LiFePO4 cells, providing reliable performance and longevity. It is available in DIN size H7/H8, which is equivalent to BCI Group 49 and 94R, ensuring compatibility with a wide range of applications. With an IP65 waterproof and dustproof rating, it is well-suited for use in harsh environments. Plus, it supports low temperature charging at -20°C, making it a versatile choice for a variety of cold settings.
Fast charge capability: Very fast charging capability up to 100A.
Low Temperature Charging: capable of being charged even in temperatures as low as -20°C, suitable for extremely cold regions.
DIN size, H7, H8 available, equivalent to BCI Group 49 and 94R.
Maintenance-free: Saving OPEX.
Intelligent Battery Manage System(BMS): Protects the cells from overvoltage, undervoltage, overcurrent,
over-temperature, short-circuit, etc, which ensures safety and reliability and prolongs the service life.
High safety & stable performance: No explosion and no fire under collision. No risk of leakage.
| Model | SPF12V100-DLT |
| Model Description | Low Temperature Charging |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1280Wh |
| Internal Resistance | ≤10 mΩ @ 50% SOC |
| Maximum Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A (3s) |
| Cycle Life | >2000cycles (DOD80%) |
| Charge Temperature Range | -20 ~ 45°C |
| Discharge Temperature Range | -20 ~ 60°C |
| Storage Temperature | -5 ~ 35°C |
| Heating Temperature Range | -20 to 5ºC |
| DIN Group Size | H7/H8 |

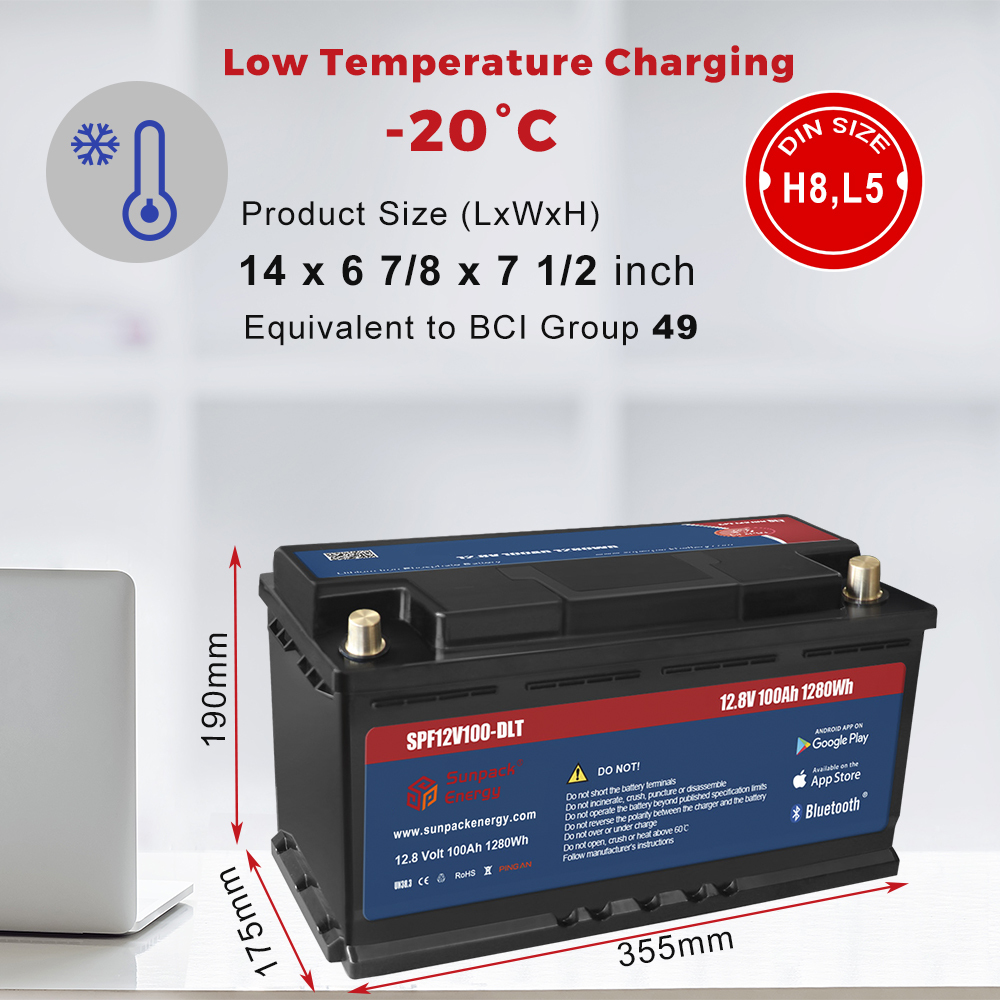

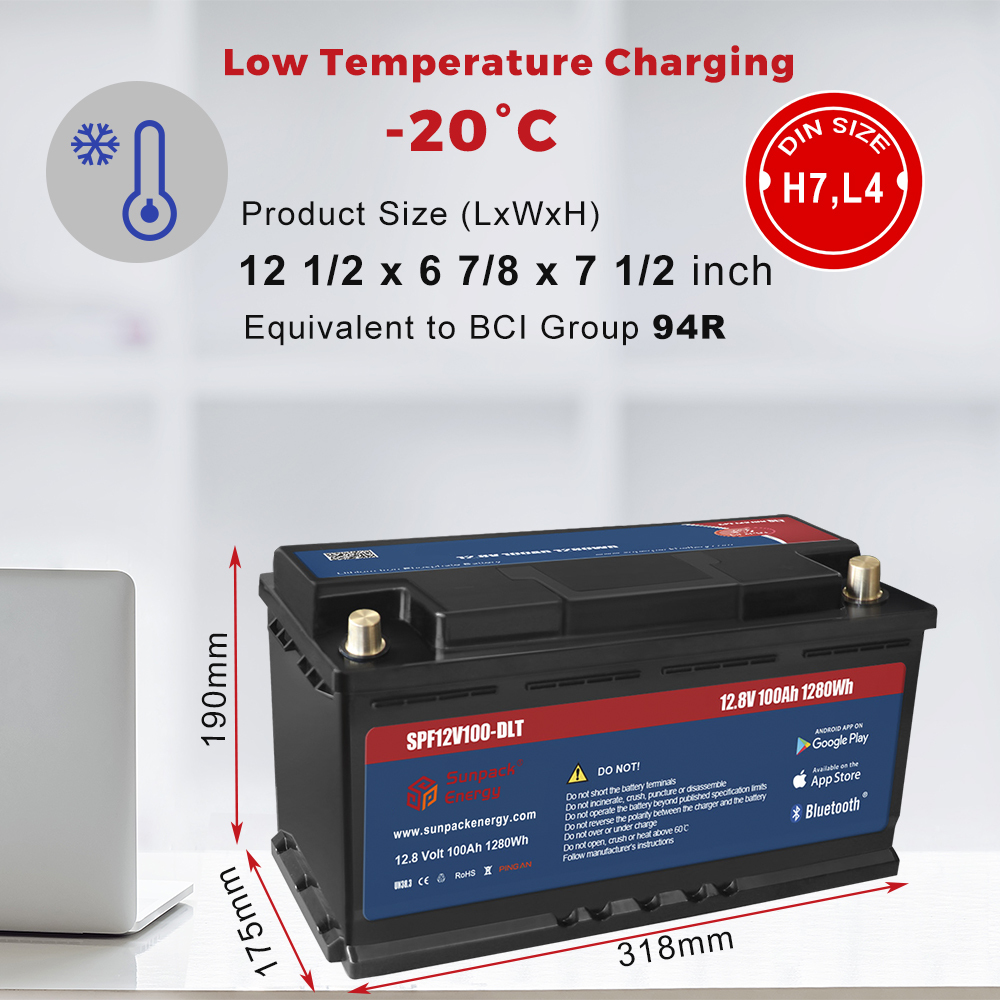

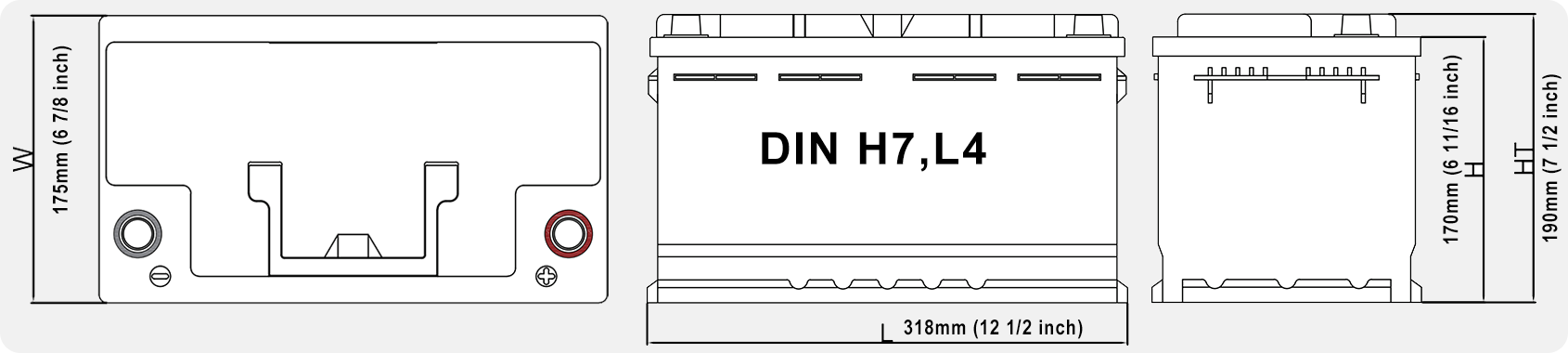

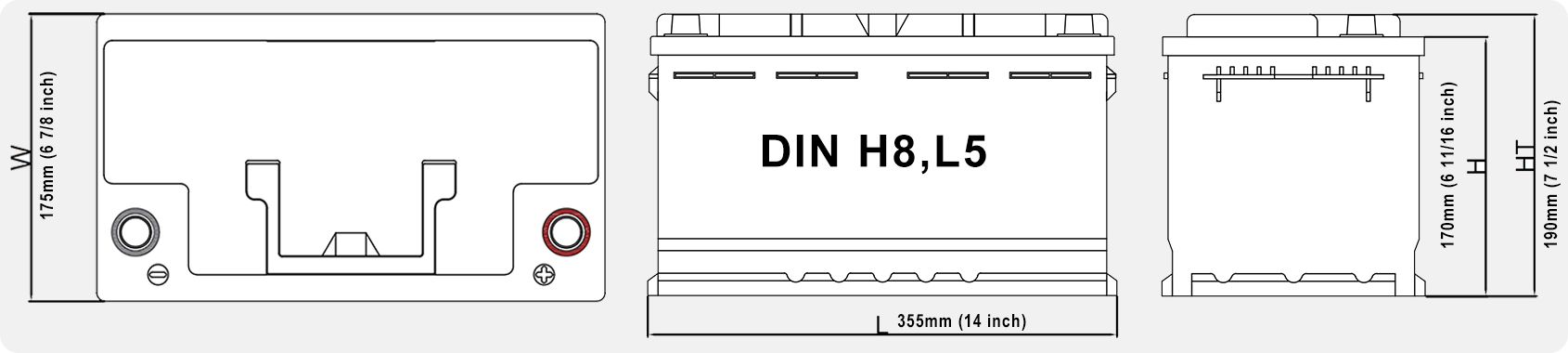

| Dimensions (L*W*H) | 318*175*190/ 355*175*190mm |
| Weight | 12.6/ 12.8kg |
| Case Material | ABS |
| Terminal Type | DIN |
| Enclosure Protection | IP65 |
| Maximum Batteries in Series | Single use |
