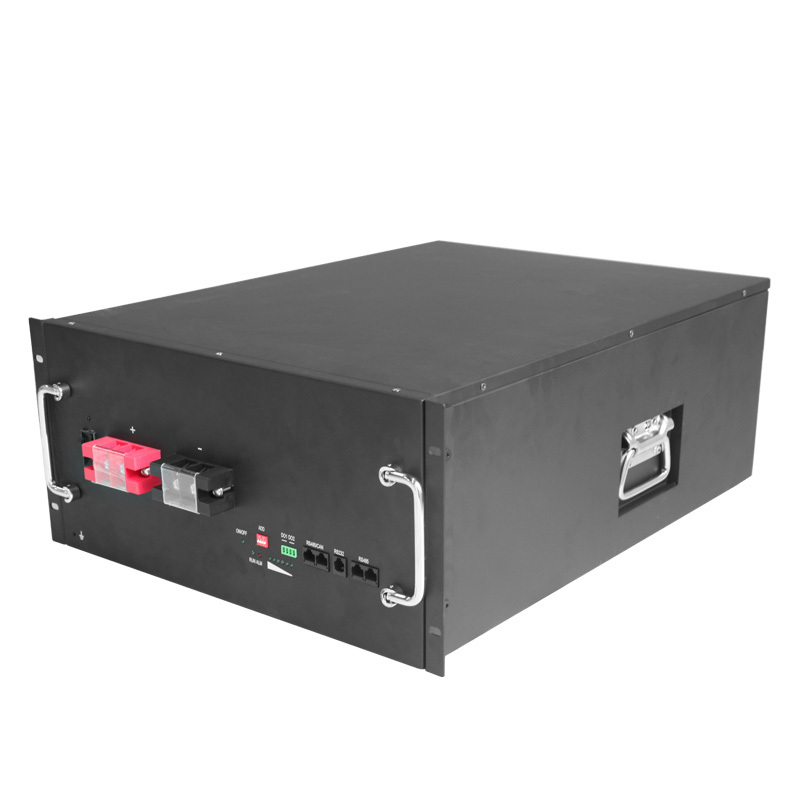

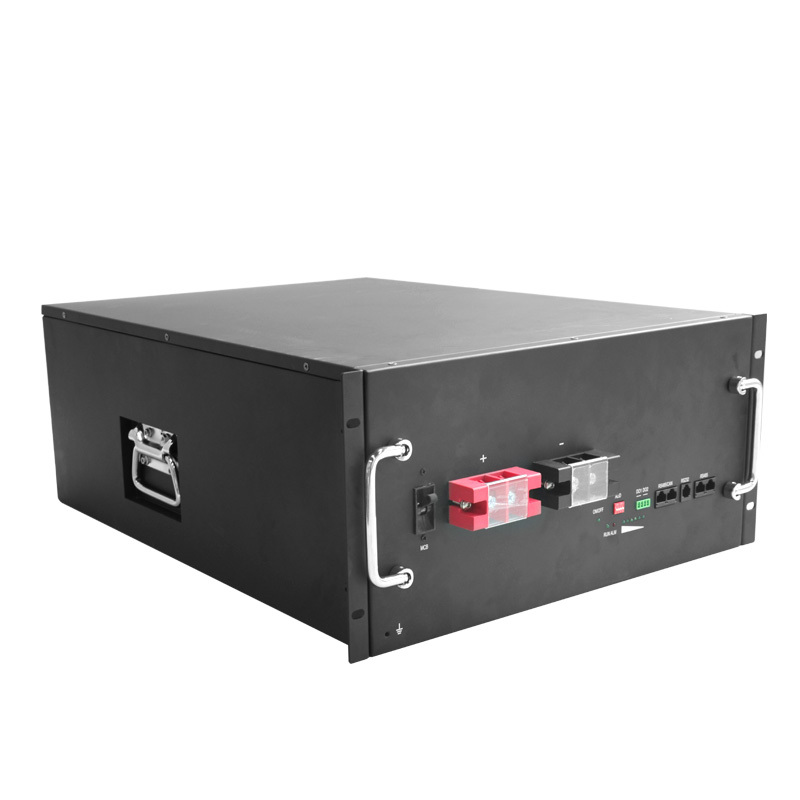

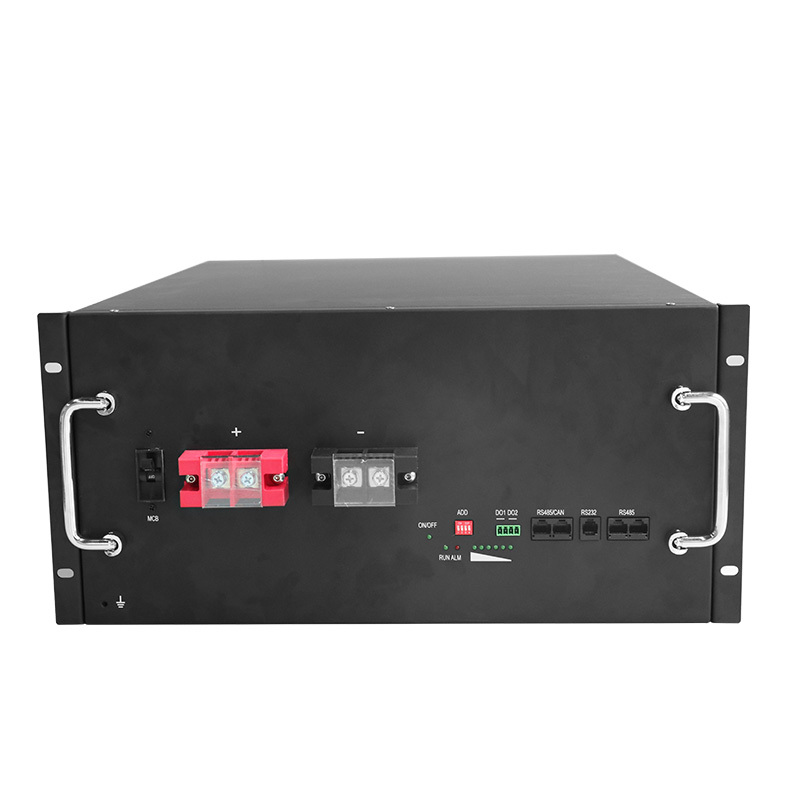

The 10kWh rack ESS is crafted using a 5U 51.2V 200AH LiFePO4 battery module, consisting of 16s2p 30 pieces of 3.2V 100Ah prismatic LiFePO4 battery cells that are equipped with a smart BMS. This allows for a maximum of 15 parallel connections.
Advantages
Long cycle life
With the use of top-notch lithium iron phosphate battery cells, our product boasts a remarkable cycle life of more than 6000 times at 80% depth of discharge (DOD), ensuring prolonged use for 10-15 years.
High quality prismatic lifepo4 battery cells
Improved capacity, exceptional current output, and extended cycle longevity.
Low internal resistance and high current
The battery boasts a low internal resistance, resulting in exceptional continuous high current discharge capabilities.
Intelligent BMS battery protection
Equipped with an advanced Battery Management System (BMS), this product is designed to effectively prevent against common issues such as overcharging, over-discharging, overcurrent, short-circuiting, and imbalance. Its built-in intelligence ensures that your battery remains safe and stable at all times.
Communicated with multiple brands inverter same time
The Battery Management System (BMS) enables simultaneous communication and docking with a variety of inverter brands.
Good safety performance
Intensive safety testing has been conducted, ensuring no risk of fire, explosion, or leakage.
Technical Parameters:
| Model | SPF48V200-5U |
| Cell Chemistry | LiFePO4 |
| Height in 19" Rack | 5U |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10.24kWh |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Maximum Output Power | 10kW |
| Parallel Quantity | Max 15pcs |
| Designed Lifespan | 10 years |
| Discharge Temperature Range | -20~55°C |
| Charge Temperature Range | 0~50°C |

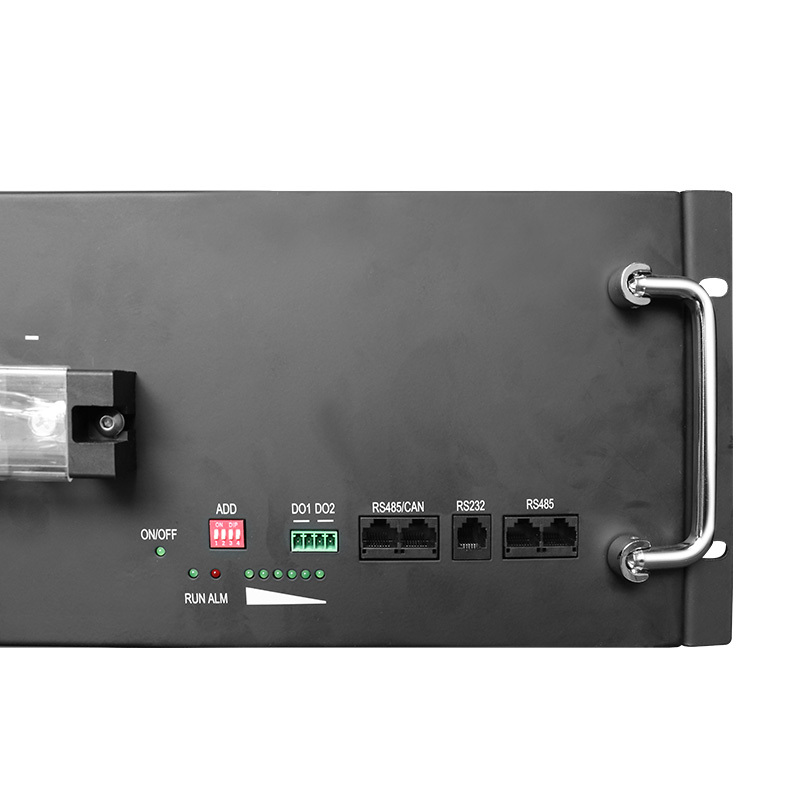

| Communication protocol | RS485/CAN |
| Matching with Inverters | MEGAREVO/GOODWE/GROWATT/SMA/SUNGROW |
| Inverter Choosing | On/Off Grid, Single/3 phases inverter |
| IP Rating | IP20 |
| Certification | IEC62619, CE61000, UN38.3 |
Over charge detection
Over discharge detection
Over current detection
Temperature protection
Short circuit protection
Cell balancing function
Computer monitor via protocol
LCD screen optional
