Key Features:

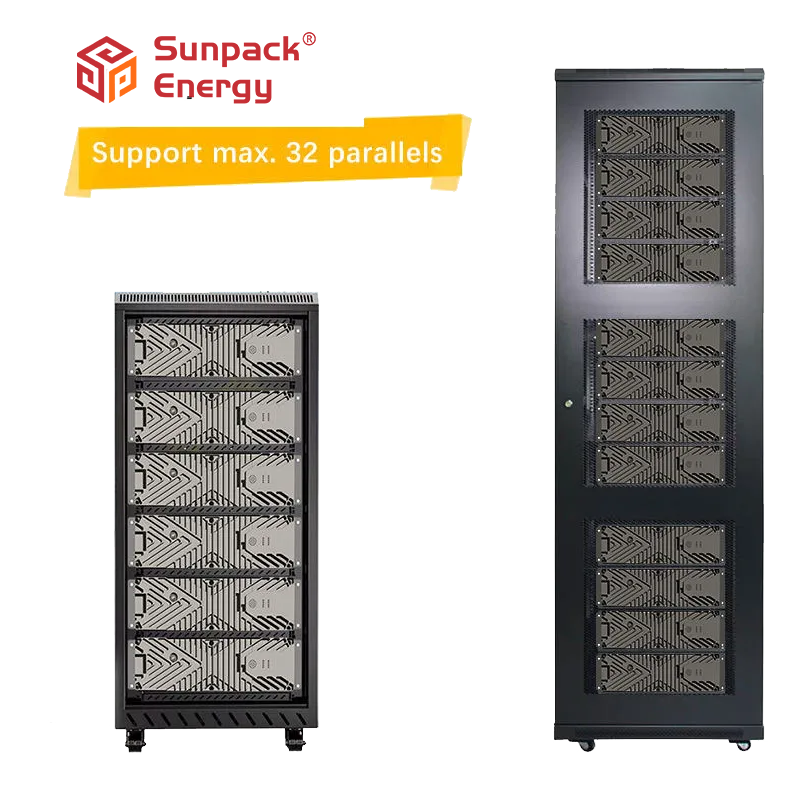

Compact Modular Design: Standard 19" server rack size. Customized services from 1U to 5U.
Long Lifespan: By incorporating A-grade cells with >6000 times cycle life and optimizing their performance through BMS management system, our batteries boast a design life of over 10 years.
Remote Monitoring: Enhance your supervision strategy with optimized remote control and diagnostics.
Safety and Security: Intelligent BMS offers a comprehensive safety package that safeguards the battery against various concerns, such as over-voltage, under-voltage, over-current, and over-temperature. Meanwhile it also detects and addresses cell and hardware irregularities to ensure safe and reliable battery functioning. In addition, anti-theft technology has been applied to ensure security.
Good Compatibility: RS485/CANbus communication protocol, which is fully compatible with leading inverter brands.

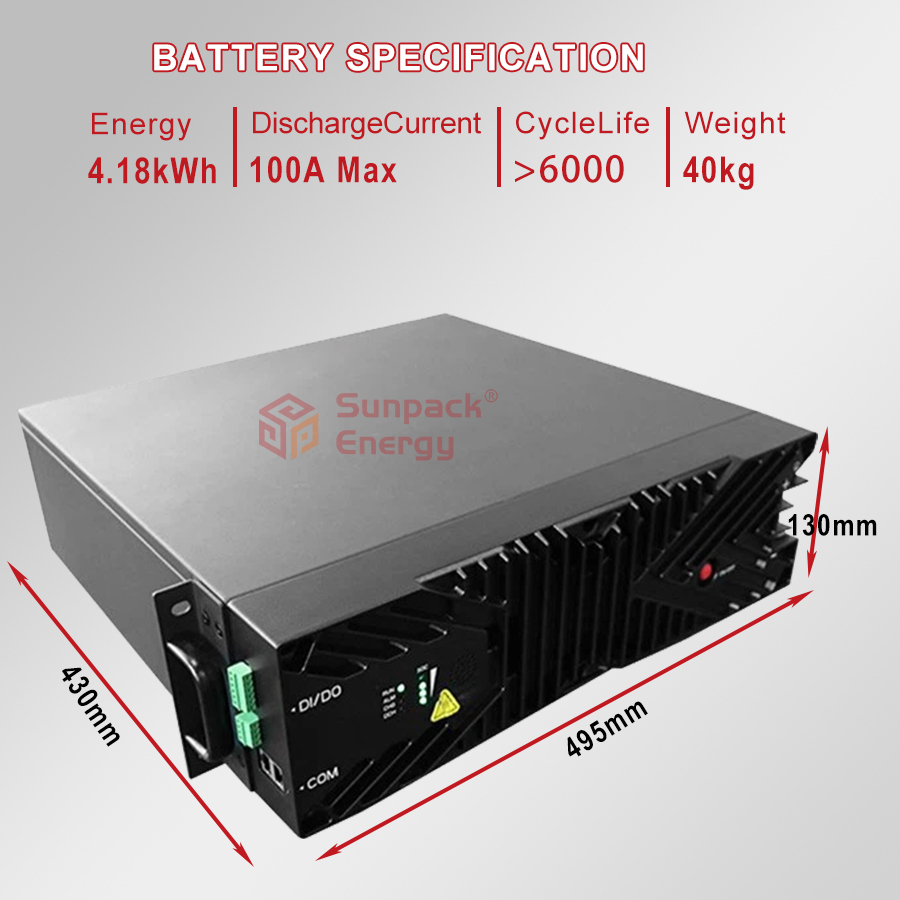

Technical Parameters:
| Model | SPF48V100-CAN |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 4.8kWh |
| Operating Voltage Rang | 44.8~57.6V |
| Maximum Output Power | 5kW |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Life Cycles | 6000 cycles at 80% DOD |
| Designed Life-Span | 10 years |
| Charging Temperature Range | 0~50°C |
| Discharging temperature | -20 ~ 60°C |

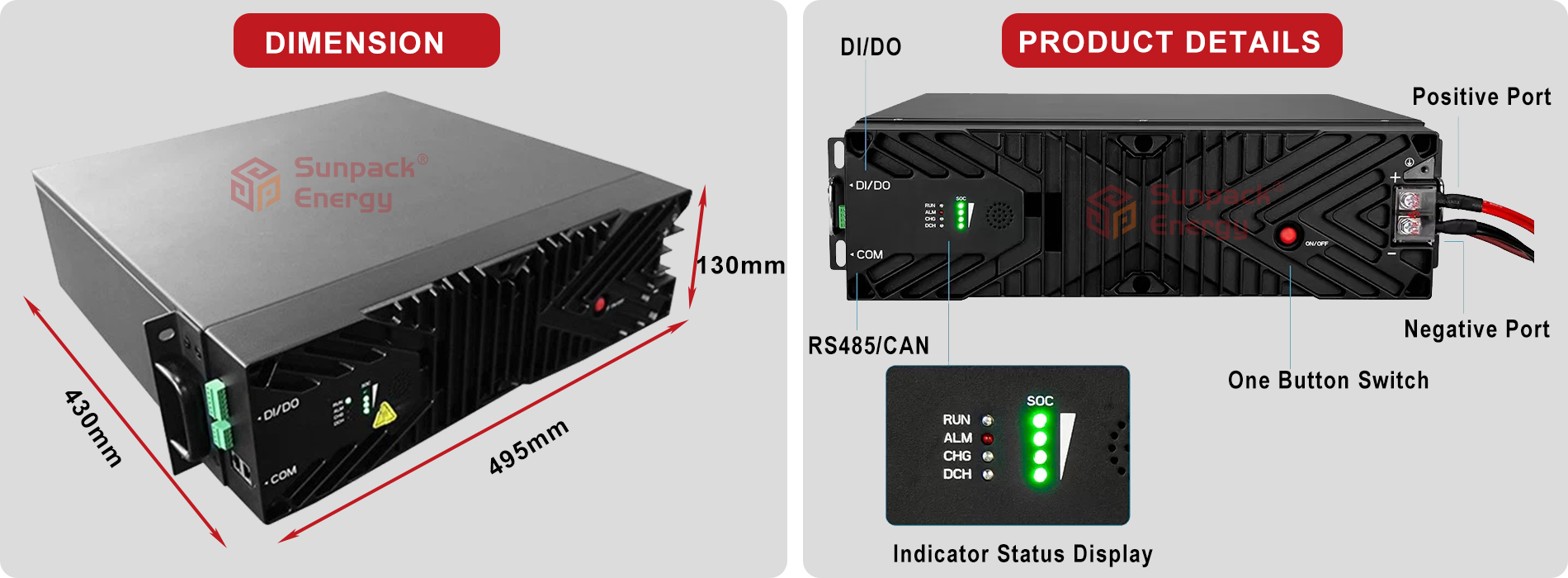

| Dimensions | 495x430x130mm |
| Weight | 40kg |
