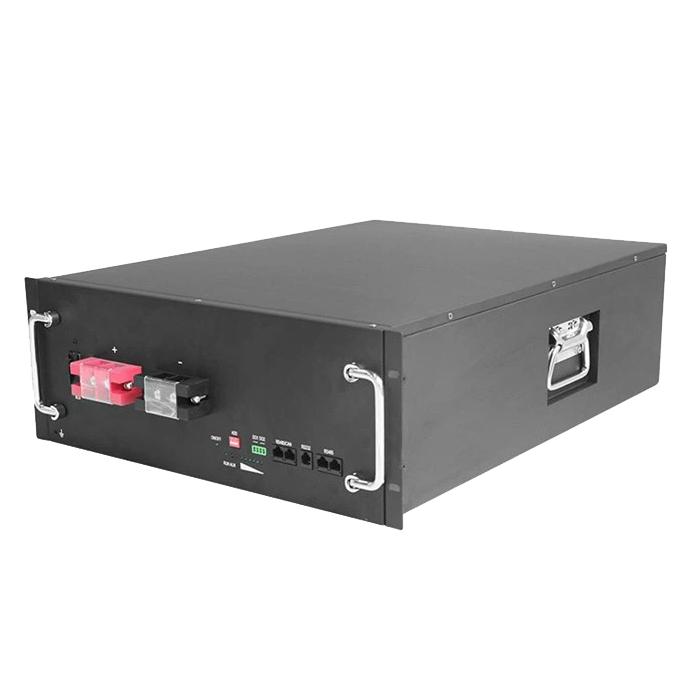

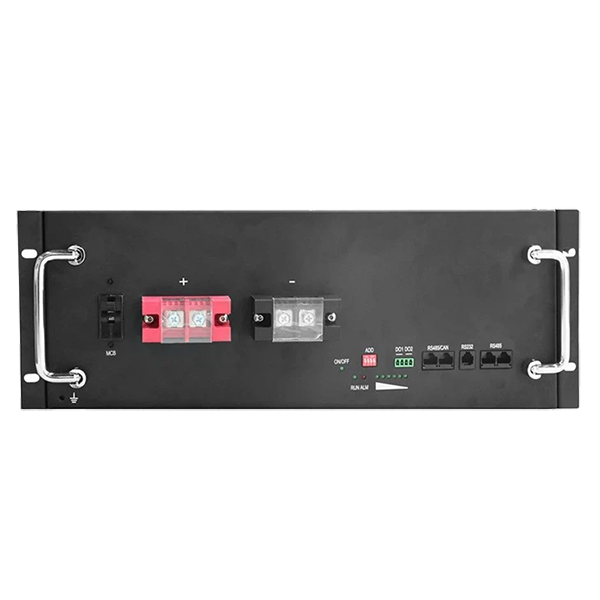

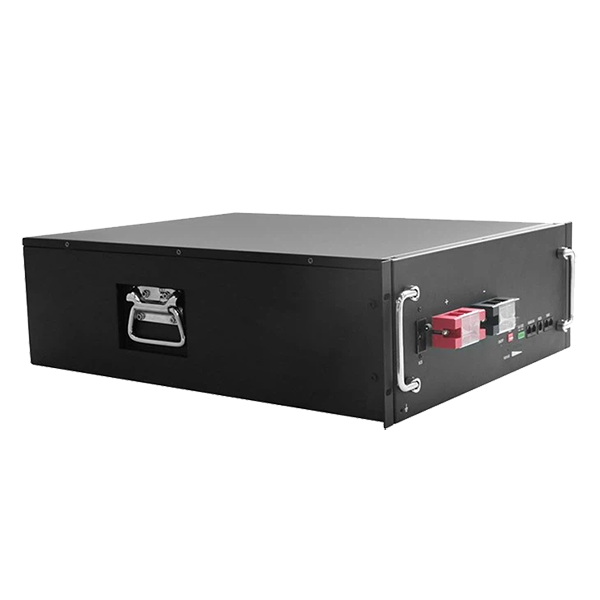

Product Summary:
This LiFePO4 battery series boasts excellent high-temperature performance and can maintain 100% capacity even under high-rate discharge. Its swift charging capabilities and eco-friendly nature make it an ideal choice.

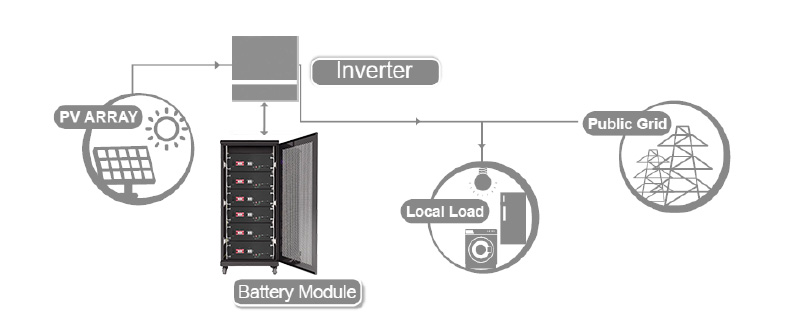

The widely adopted 19-inch rack size offers versatility, fitting seamlessly into diverse scenarios, including home solar energy storage systems, telecommunications base stations, data centers, and small and medium-sized businesses.
Technical Parameters:
| Model | SPF48V150-4U |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 150Ah |
| Nominal Energy | 7.68kWh |
| Dimensions (LxDxH) | 482*600*177mm |
| Height in 19" Rack | 4U |
| Approx. Weight: | 65kg |
| Maximum Charge Current | 150A |
| Maximum Discharge Current | 150A |
| Maximum Output Power | 7kW |
| Parallel Quantity | Max 15pcs |
| Cycle Life | 6000 cycles at 80% DOD |
| Designed Lifespan | 10 years |
| Discharge Temperature Range | -20~55°C |
| Charge Temperature Range | 0~50°C |
| Heat Management | Air Cooling |
| Communication protocol | RS485/CAN |
| Matching with Inverters | MEGAREVO/GOODWE/GROWATT/SMA/SUNGROW |
| Inverter Choosing | On/Off Grid, Single/3 phases inverter |
| IP Rating | IP20 |
| Certification | IEC62619, CE61000, UN38.3 |
