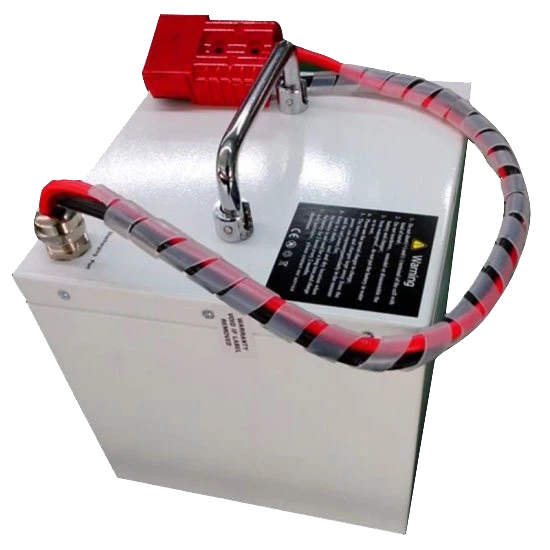

This 60V10Ah Lithium-ion LiFePO4 Battery comes equipped with an integrated BMS, providing enhanced safety and longevity. Its IP56 feature also makes it perfect for outdoor usage. This battery is versatile and ideal for a variety of electric vehicles, such as electric bicycles, scooters, wheelchairs, and more.
Features:
1) Safety and economical
Each battery is equipped with a built-in BMS that provides protection against under/over voltage, cell imbalances, and temperature fluctuations.
LiFePO4, also known as lithium iron phosphate battery, is renowned for its exceptional stability, superior thermal tolerance, and enhanced safety in contrast to other lithium-ion chemistries such as NCM.
2) Excellent discharge characteristics
These batteries exhibit low internal resistance and high, steady voltage properties when subjected to high current discharges, which widens their potential applications.
3) Long cycle life
This top-of-the-line lithium battery boasts over 2000 cycles, which means it can last for years without needing to be replaced.
4) Lower Weight
About 1/3 the Weight of its Counterpart Lead-acid/SLA Battery, Much Lighter to Carry and Move.
Multi-Protection with BMS
Equipped with an advanced BMS protective plate, our batteries feature top-of-the-line A grade cells that effectively prevent overcharging, over-discharge, over-current, and short circuits. This ensures a long lifespan expectancy for our products, making them the perfect choice for your needs.
Technical Parameters:
| Model | SPF60V10Ah |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 64.0V |
| Nominal Capacity | 10Ah |
| Nominal Energy | 640Wh |
| Cycle Life | >2000 times @80DoD |
| Dimension (L*W*H) | 195*150*150mm |
| Approx. Weight | 8.5kg |
| Internal Resistance (mΩ) | ≤90mΩ |
| Discharge Cutoff Voltage | 50.0V |
| Charge Cutoff Voltage | 73.0V |
| Standard Charge | 0.2C |
| Maximum Charge Current | 10A |
| Standard Discharge | 0.2C |
| Maximum Continuous Discharge Current | 10A |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Terminals | Anderson SA120 |
| Housing Material | Iron |
| IP Rating | IP56 |
