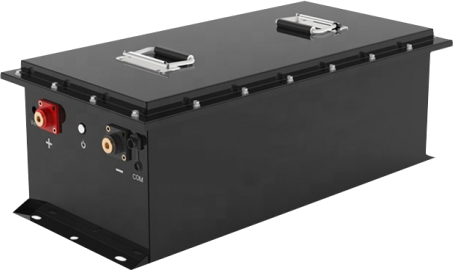

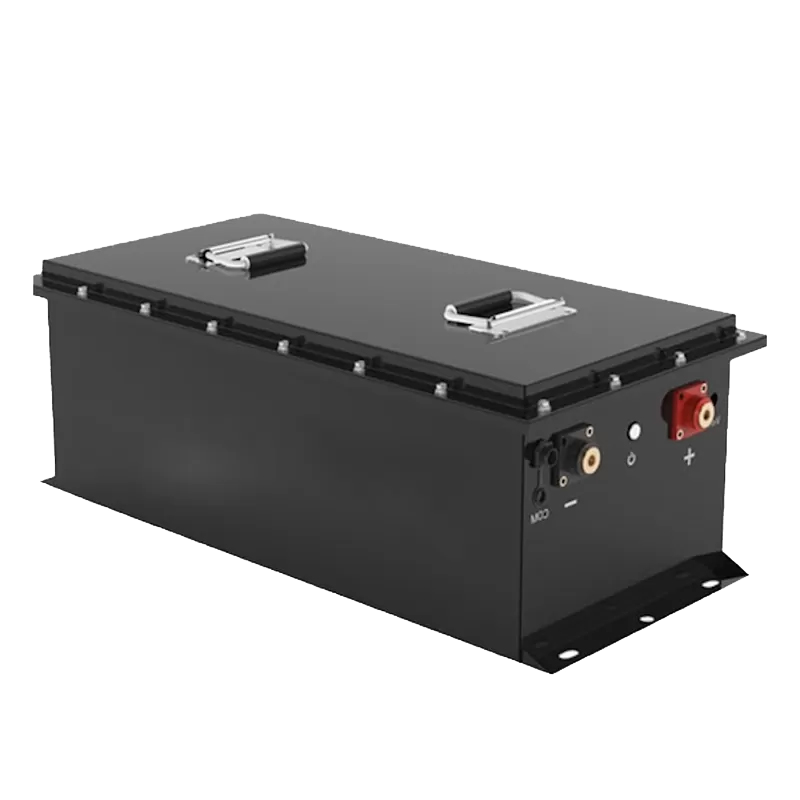

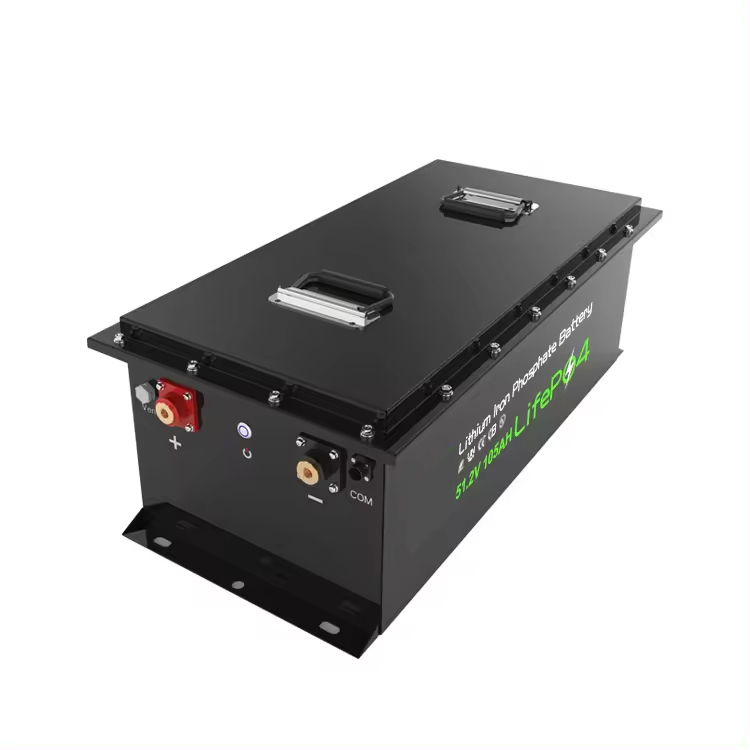

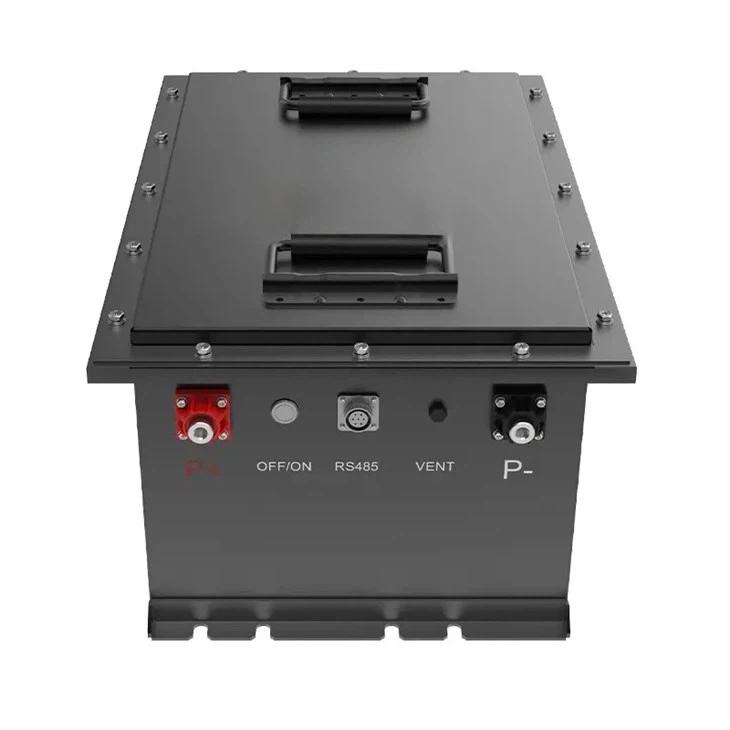

This lithium battery is expertly tailored to power golf carts, providing an impressive 5kWh of energy for long-lasting and outstanding performance. With state-of-the-art smart BMS control, it can withstand high discharge currents without sacrificing quality and requires zero maintenance. Its exceptional heat resistance enables use in temperatures spanning from 0°C to 45°C. Additionally, this product guarantees peace of mind with a comprehensive 2-year warranty, ensuring that you can hit the golf course without any concerns.
We also provide customized battery services, such as specific voltage, capacity, current, dimensions, etc. Golf cart batteries come in 24V, 36V, 48V, and other variations, so you can choose the perfect fit for your cart. By upgrading, you can enjoy better handling, reduced wear and tear on your vehicle, and lowered maintenance costs. Don't settle for less when it comes to your golf cart – upgrade to a lithium battery and feel the difference.
Features:
LiFePO4 Chemistry — LiFePO4 or lithium iron phosphate battery, is a type of lithium-ion chemistry of rechargeable battery that uses lithium iron phosphate as its cathode material, known for its stability, high thermal tolerance, and enhanced safety compared to other lithium-ion chemistries like NCM.
Grade A Cells – Using high quality lithium iron phosphate battery as the main body of energy storage, with feature of large capacity, light weight and large power.
Built-in BMS — The intelligent BMS provides comprehensive protection for the battery, including over-voltage, under-voltage, over-current, and over-temperature protection. The BMS helps ensure the safety and optimal performance of the battery.
Automatic Protection Functions — The intelligent BMS provides comprehensive protection for the battery, including over-voltage, under-voltage, over-current, and over-temperature protection.
Application:
In addition to golf carts, this excellent 48V 100Ah lithium iron phosphate battery is suitable for AGVs, forklifts, electric boats, and other equipment that require instant high power.
Technical Parameters:
| Model | SPF48V100-ST |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Assembly method | IFR26650EC-3.6Ah 16S28P |
| Charging cut-off Voltage | ≤58.4V (3.65V/cell) |
| Discharge Cut-off Voltage | ≥40V(2.5V/cell) |
| Standard charging time | ≥5 hours |
| Charging Method | CC/CV |
| Maximum Charge Current | 50A@20℃ |
| Maximum Discharge Current | 100A@20℃ |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Communication protocol | CAN, GX16-6 |
| Batteries in series | Single use only |
| Internal resistance | ≤20 mΩ @ 50% SOC |
| Housing material | Cold rolled steel sheet |
| Terminals | Bolt M8*20mm |
| Dimension(L*D*H) | L832.4*W285*H255mm |
| Weight (Approx) | 58kg |
| Product name | Golf Cart Battery Pack |
| Brand Name | Sunpack |
| Model Number | 48V 200Ah Golf Cart Battery |
| Battery Type | LiFePO4 |
| Nominal Voltage | 24V 36V 48V 51.2V 72V |
| Rated Capacity | 50Ah/105Ah/160Ah/200Ah |
| Life Cycles Times | 4000 |
| Material | LifePo4 Lithium Iron Battery |
| Discharge cut-off voltage | ≥30V ≥40V ≥60V |
| Charging cut-off voltage | ≤43.8V ≤58.4V ≤87.6V |
| Certification | CE/RoHS/UN38.3/MSDS |
| Application | Low speed vehicles |
| Battery cell Grade | A- Grade |
